VM系列-两端外螺纹-软密封锥阀芯-管式单向阀

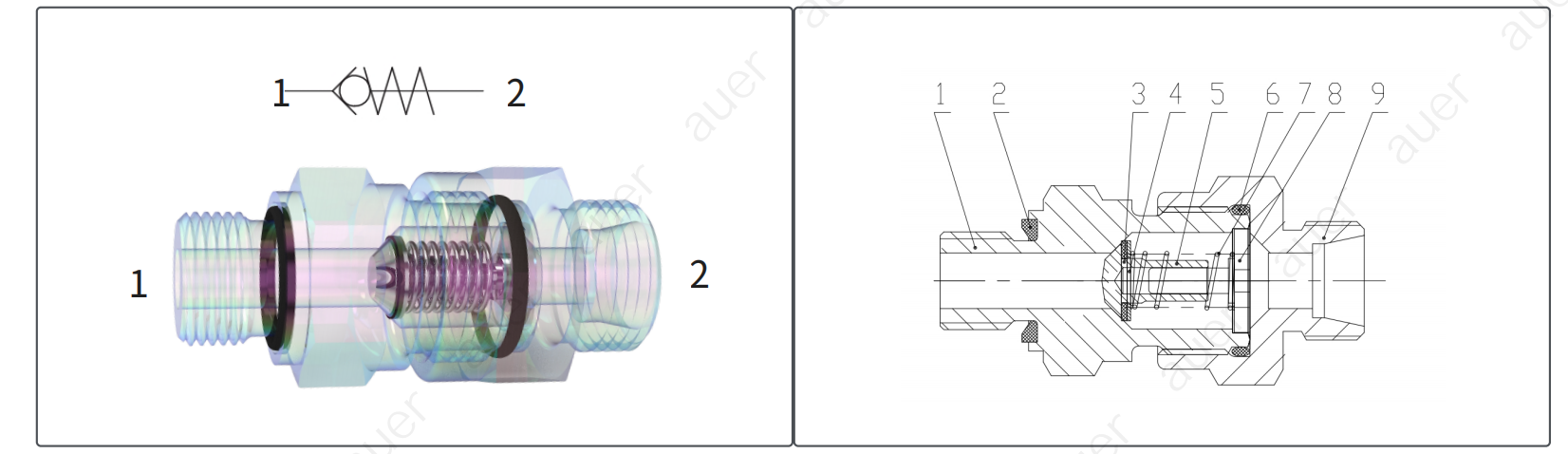

1. 结构及原理
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | |||||
| 阀体 | ED胶垫 | 橡胶垫 | 挡圈 | 阀芯 | O型圈 | 弹簧 | 弹簧座 | 接头 | |||||
2. 特性
压力作用下使得流体从1流向2 ，而液体从2流向1时则反向密封，油液无法通过
通过90º锥阀芯和合成材料的密封环与锥阀座配合实现密封，阀芯开启具有定位，因此开启可靠，振动小，噪音低，阀体流通截面均匀。推荐的最大流速不超过8米/秒
2.1 开启压力：标准开启压力为0.5bar ，可提供 0.2，0.7，1 ，2 ，3 ，4， 5 ，6，7 bar，允许在+-20%内变化
2.2理想工作温度：NBR:-20°C～+90°C/ FKM :-5°C～+180°C/HNBR:-40°C～+120°C
2.3安装扭矩：参考4.参数里的扭矩说明，注：本体材料为碳钢，拧入件为钢件， 其他材料请联系auer工程师
2.4油液清洁度：ISO4406：1999标准4μm/6μm/14μm 19/17/14
2.5 auer提供阻尼单向阀，阻尼孔尺寸请联系auer工程师

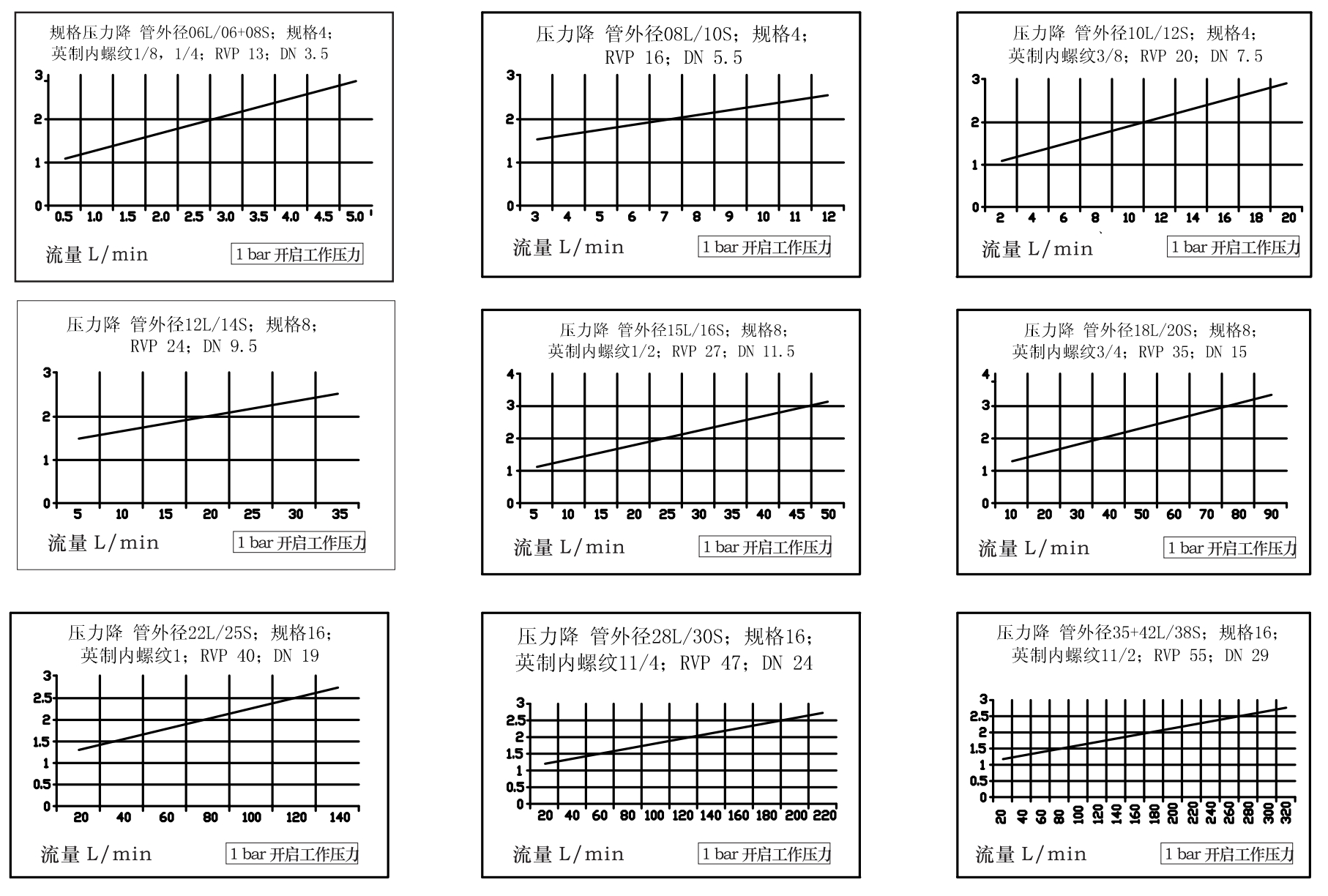

3. 流量-压降曲线

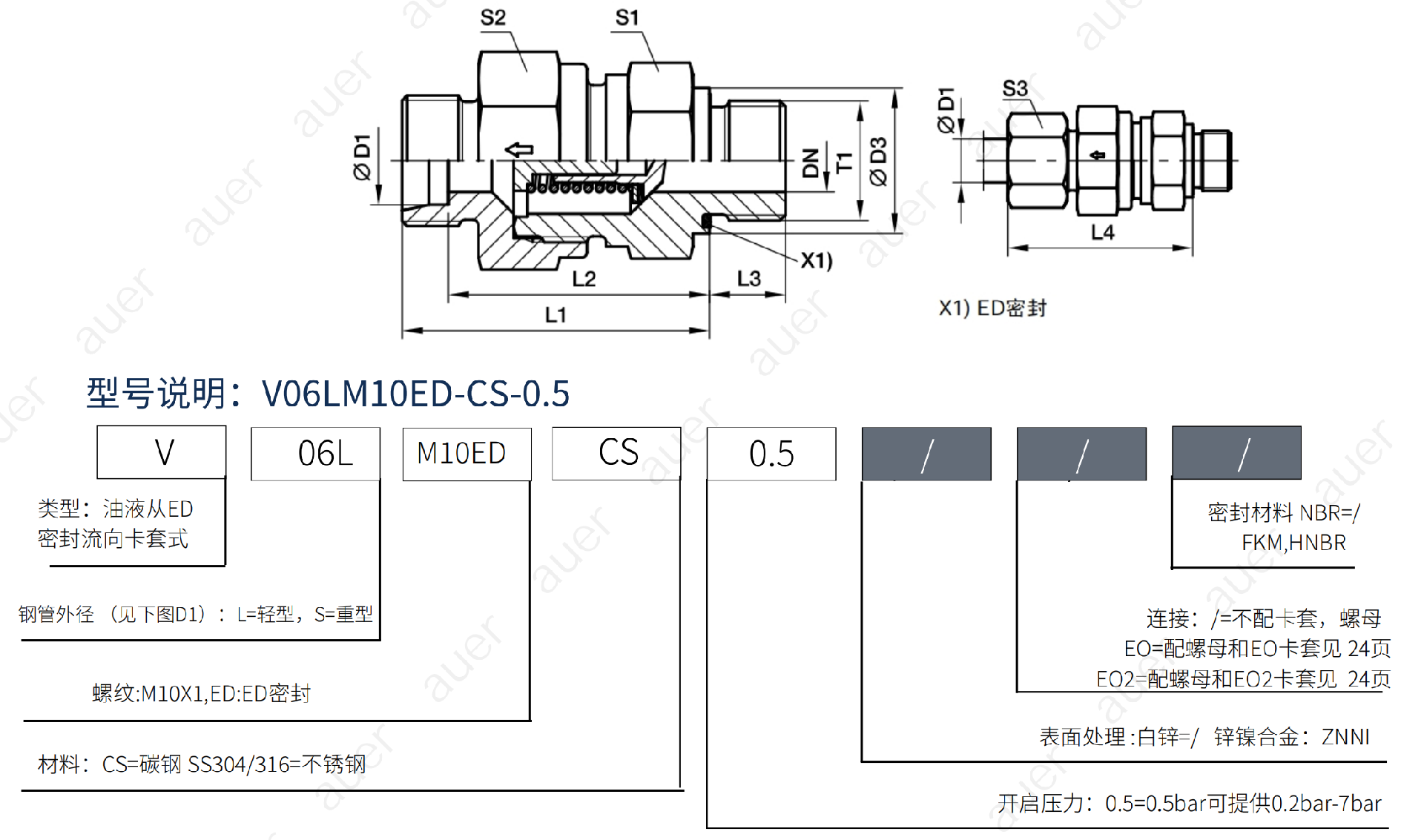

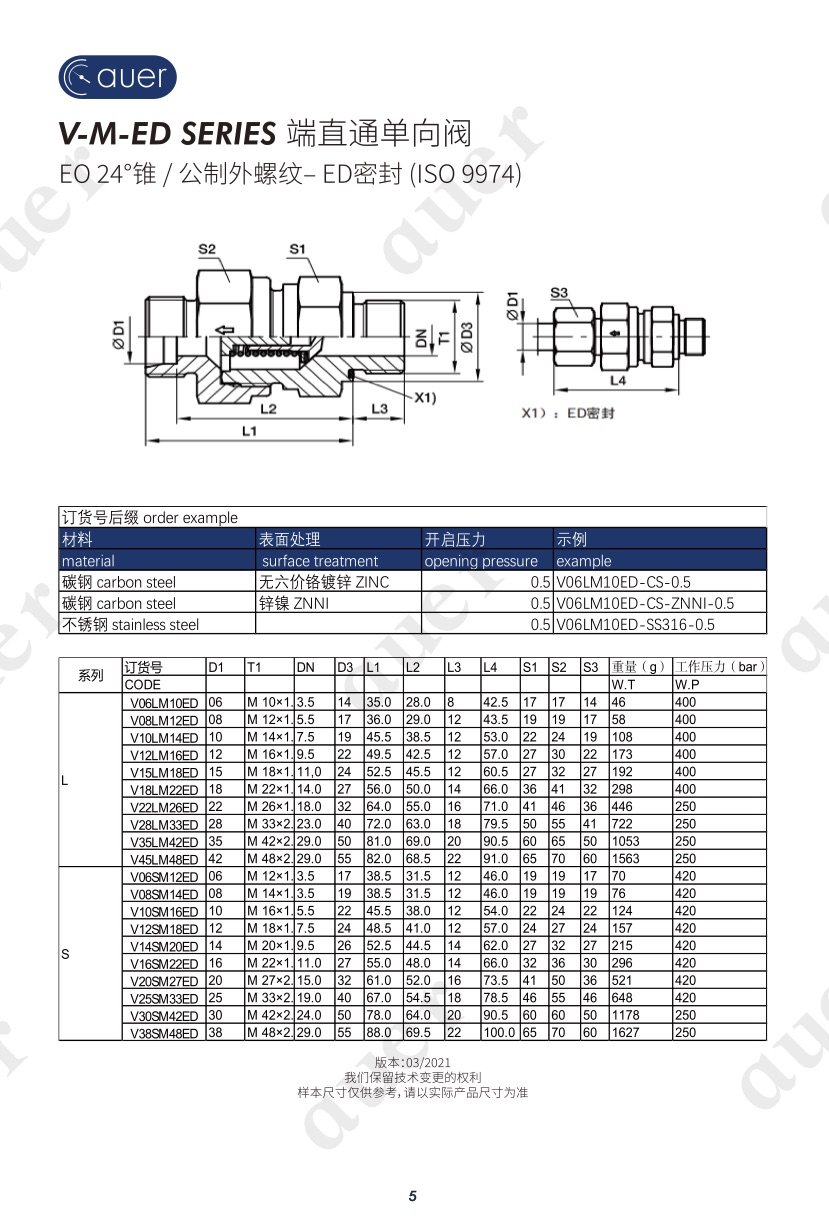

4. 参数及型号说明
| CODE | THREAD | D1 | TITHREAD | DN | L1 | L3 | L4 | S1 | S2 | S3 | TORQUE | W.T | W.P | ||
| 型号 | 螺纹 | 钢管外径 | 螺纹 | 通径 | 扭矩(Nm) | 重量(g) | 工作压力(bar) | ||||||||
| V06LM10ED | M12X1.5 | 06 | M10×1.0 | 3.5 | 35.0 | 8 | 42.5 | 17 | 17 | 14 | 15-25 | 46 | 400 | ||
| V08LM12ED | M14×1.5 | 08 | M12×1.5 | 5.5 | 36.0 | 12 | 43.5 | 19 | 19 | 17 | 20-35 | 58 | 400 | ||
| V10LM14ED | M16X1.5 | 10 | M14×1.5 | 7.5 | 45.5 | 12 | 53.0 | 22 | 24 | 19 | 25-40 | 108 | 400 | ||
| V12LM16ED | M18X1.5 | 12 | M16×1.5 | 9.5 | 49.5 | 12 | 57.0 | 27 | 30 | 22 | 30-45 | 173 | 400 | ||
| V15LM18ED | M22X1.5 | 15 | M18×1.5 | 110 | 52.5 | 12 | 60.5 | 27 | 32 | 27 | 40-70 | 192 | 400 | ||
| V18LM22ED | M26X1.5 | 18 | M22×1.5 | 14.0 | 56.0 | 14 | 66.0 | 36 | 41 | 32 | 60-100 | 298 | 400 | ||
| V22LM26ED | M30X2.0 | 22 | M26×1.5 | 18.0 | 64.0 | 16 | 71.0 | 41 | 46 | 36 | 100-135 | 446 | 250 | ||
| V28LM33ED | M36X2.0 | 28 | M33×2.0 | 23.0 | 72.0 | 18 | 79.5 | 50 | 55 | 41 | 260-360 | 722 | 250 | ||
| V35LM42ED | M45X2.0 | 35 | M42×2.0 | 29.0 | 81.0 | 20 | 90.5 | 60 | 65 | 50 | 150-240 | 1053 | 250 | ||
| V45LM48ED | M52X2.0 | 42 | M48×2.0 | 29.0 | 82.0 | 22 | 91.0 | 65 | 70 | 60 | 300-400 | 1563 | 250 | ||
| V06SM12ED | M14X1.5 | 06 | M12×1.5 | 3.5 | 38.5 | 12 | 46.0 | 19 | 19 | 17 | 20-35 | 70 | 420 | ||
| VO8SM14ED | M16X1.5 | 08 | M14×1.5 | 3.5 | 38.5 | 12 | 46.0 | 19 | 19 | 19 | 25-40 | 76 | 420 | ||
| V10SM16ED | M18X1.5 | 10 | M16×1.5 | 5.5 | 45.5 | 12 | 54.0 | 22 | 24 | 22 | 30-35 | 124 | 420 | ||
| V12SM18ED | M20X1.5 | 12 | M18×1.5 | 7.5 | 48.5 | 12 | 57.0 | 24 | 27 | 24 | 35-45 | 157 | 420 | ||
| V14SM20ED | M22X1.5 | 14 | M20×1.5 | 9.5 | 52.5 | 14 | 62.0 | 27 | 32 | 27 | 40-70 | 215 | 420 | ||
| V16SM22ED | M24X1.5 | 16 | M22×1.5 | 11.0 | 55.0 | 14 | 66.0 | 32 | 36 | 30 | 50-80 | 296 | 420 | ||
| V20SM27ED | M30X2.0 | 20 | M27×2.0 | 15.0 | 61.0 | 16 | 73.5 | 41 | 50 | 36 | 100-135 | 521 | 420 | ||
| V255M33ED | M36X2.0 | 25 | M33×2.0 | 19.0 | 67.0 | 18 | 78.5 | 46 | 55 | 46 | 150-240 | 648 | 420 | ||
| V30SM42ED | M42X2.0 | 30 | M42×2.0 | 24.0 | 78.0 | 20 | 90.5 | 60 | 60 | 50 | 260-360 | 1178 | 250 | ||
| V38SM48ED | M52X2.0 | 38 | M48×2.0 | 29.0 | 88.0 | 22 | 10.0 | 65 | 70 | 60 | 300-400 | 1627 | 250 | ||
