Explosion-proof valve

FB series-pipe explosion-proof valve

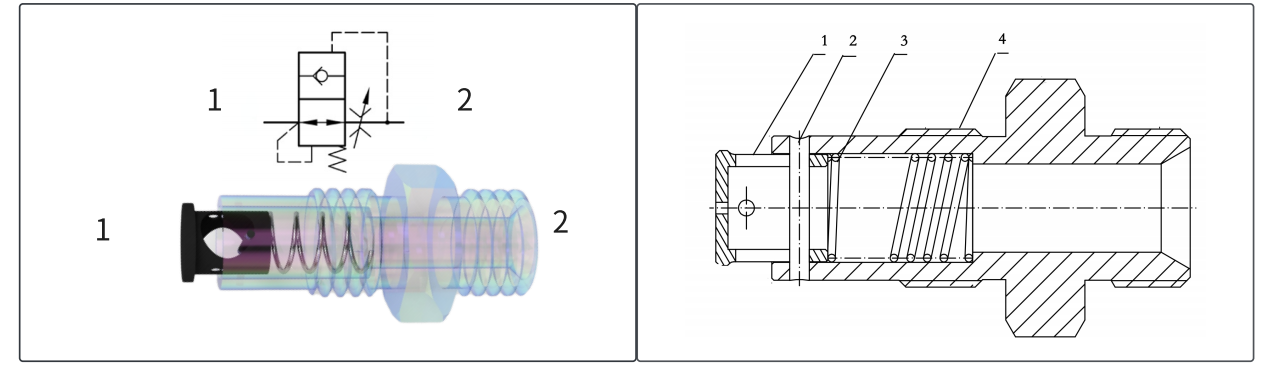

1.Structure and symbol

1								2								3								4
Spool								Hole pin								Spring								Valve body

2. Operation

Under pressure,the fluid flows from 1 to 2.After the valve core is closed,the fluid passes through the damping hole,resulting in a rapid decrease in flow rate.

3.1 Pressure flow meter for blocking and opening/closing

FBM22/FBB08 explosion-proof valve performance testing data

CODE

Flow(L/min)

Free flow pressure loss

Blocking(or closing)

Blocked flow rate (at 9.8MPa)

(At 30L/min)

Index;95-107L/min

Index;21±3L/min

Index≤0.2MPa

103L/min

32.5L/min

102L/min

31L/min

0.1

105L/min

32L/min

102L/min

31.8L/min

3.2 Pressure flow meter for blocking and opening/closing

FBM18 Explosion proof valve performance testing data

CODE

Flow(L/min)

Free flow pressure loss

Blocking(or closing)

Blocked flow rate (at 9.8MPa)

(at 30L/min)

index;82-94L/min

index;11±3 L/min

index≤0.2MPa

82.5L/min

8.8L/min

83.5L/min

10.5L/min

0.1

83L/min

8.5L/min

82.5L/min

11.2L/min

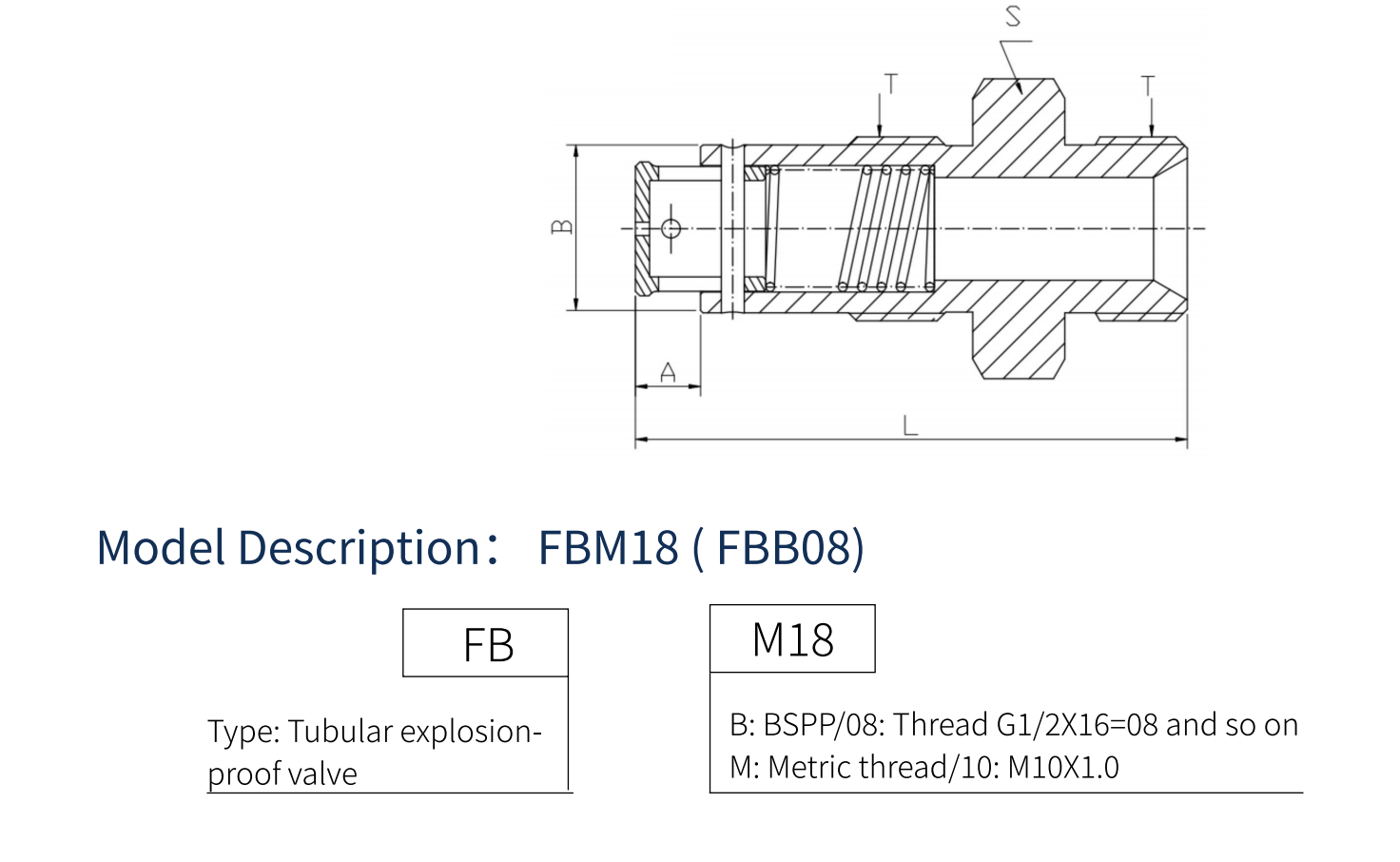

4.Data sheet

CODE	T THREAD	L	A	B	S	W.P	W.T
		[mm]	[mm]	[mm]	[mm]	(bar)	(g)
FBM18	M18X1.5	49	7.5	18	22	350	59
FBM22	M22X1.5	67	7.5	18	27	350	118
FBM26	M26X1.5	74.8	12.3	24.8	32	350	175
FBB08	G1/2	67	7.5	18	27	350	118
