WV series-T shuttle valve

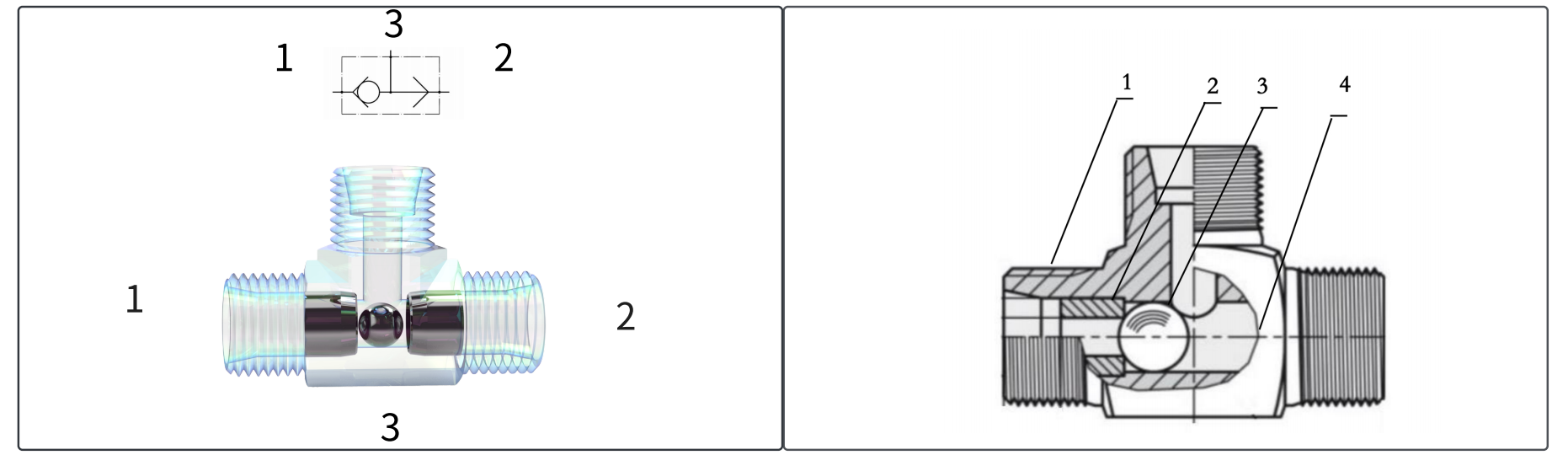

1.Structure and symbol
| 1 | 2 | 3 | 4 | ||||||||||||||||||||||||||||||||||||
| valve body | spool | steel ball | spool | ||||||||||||||||||||||||||||||||||||
2. Operation
When the inlet pressure of 1 is greater than 2,the fluid flows from 1 to 3,and 2 is closed. When the inlet pressure of 2 is greater than 1,the fluid flows from 2 to 3,and 1is closed.It is generally used to automatically open the hydraulic motor brake;Compare the hydraulic motor oil port pressure,and compare the high pressure oil port with the hydraulic system Connect the release end of the actuator.
4. Data sheet
| CODE | TTHREAD | D1 | DN | L1 | L2 | L3 | S1 | S2 | W.P | W.T | |||||||||||||||||||||||||||
| [mm] | [mm] | [mm] | [mm] | [mm] | [/min] | (bar) | (bar) | (g) | |||||||||||||||||||||||||||||
| WV08L | M14X1.5 | 8 | 4.5 | 21 | 14 | 29 | 14 | 17 | 160 | 65 | |||||||||||||||||||||||||||
| WV10L | M16X1.5 | 10 | 6 | 22 | 15 | 30 | 17 | 19 | 160 | 73 | |||||||||||||||||||||||||||
| WV12L | M18X1.5 | 12 | 7.5 | 24 | 17 | 32 | 19 | 22 | 160 | 85 | |||||||||||||||||||||||||||
| WV15L | M22X1.5 | 15 | 10 | 28 | 21 | 36 | 19 | 27 | 160 | 136 | |||||||||||||||||||||||||||
